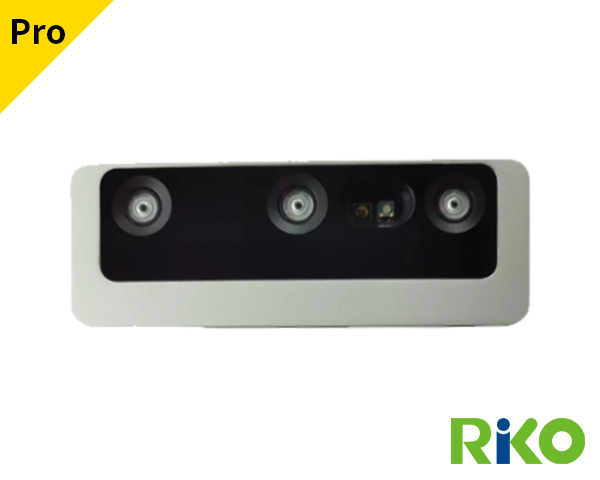

OAK-D Pro W PoE

The OAK-D Pro W PoE is the more rugged version of Series 2 OAK Cameras and features an IR laser dot projector and IR illumination LED (for night vision). In addition, it offers a Wider Field of View, making it perfect for a diverse range of projects.

Series 2 offers an industrial M12 PoE connector (instead of plain RJ45) for power and communication. Additionally, it features an M8 connector for IO connectivity; USB2 (D+, D-), camera IOs (FSIN, STROBE), and 2 other auxiliary IOs capable of UART, I2C, or GPIO.

Description

Main Features:

  • M12 X-Coded Ethernet, 802.3af PoE, 1 Gbps Ethernet
  • M8 connector with quite a bit of IO flexibility, including USB2 host
  • IP65 Sealed casing/protection
  • IR illumination LED: allows perceiving low-light and no-light environments
  • IR laser dot projector (active stereo)improves depth perception, especially for low-visual-interest surfaces (little or no surface texture)
  • 4 TOPS of processing power (1.4 TOPS for AI)
  • Run any AI model, even custom architectured/built ones
  • Encoding: H.264, H.265, MJPEG - 4K/30FPS, 1080P/60FPS
  • Computer vision: warp/dewarp, resize, crop, edge detection, feature tracking
  • Stereo depth perception at 120 FPS with filtering
  • Object tracking: 2D and 3D tracking
  • Dimension: 111x40x31.3 mm
  • Weight: 184g



Camera Specifications:



Color camera

Stereo pair

Sensor

IMX378

OV9282

Shutter

rolling

global

DFOV / HFOV / VFOV

120°/95°/70°

150°/128°/80°

Resolution

12MP (4032x3040)

1MP (1280x800)

Focus

FF: 60cm - ∞

FF: 18cm - ∞

Max Framerate

60 FPS

120 FPS
