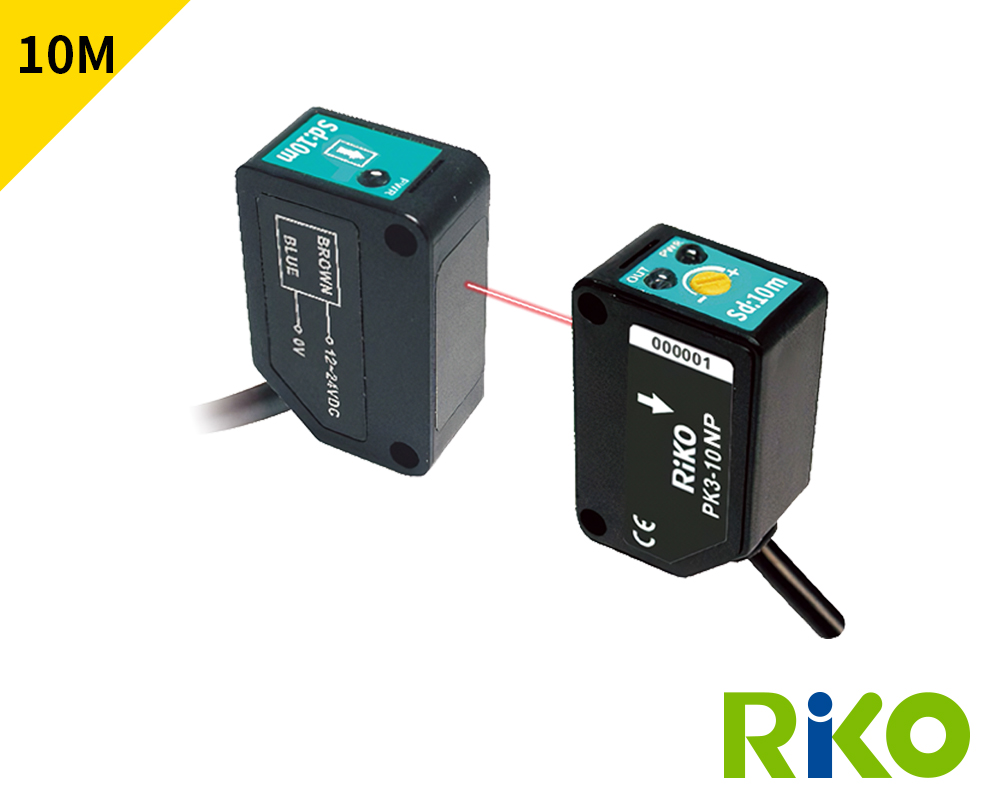

PK3-10NP Photo sensor
• Standard screw hole 25.4mm.
• Visible dual LED makes it easy to know the current operating situation.
• Compact size (w12xH31xD20mm) , space saving.
Description

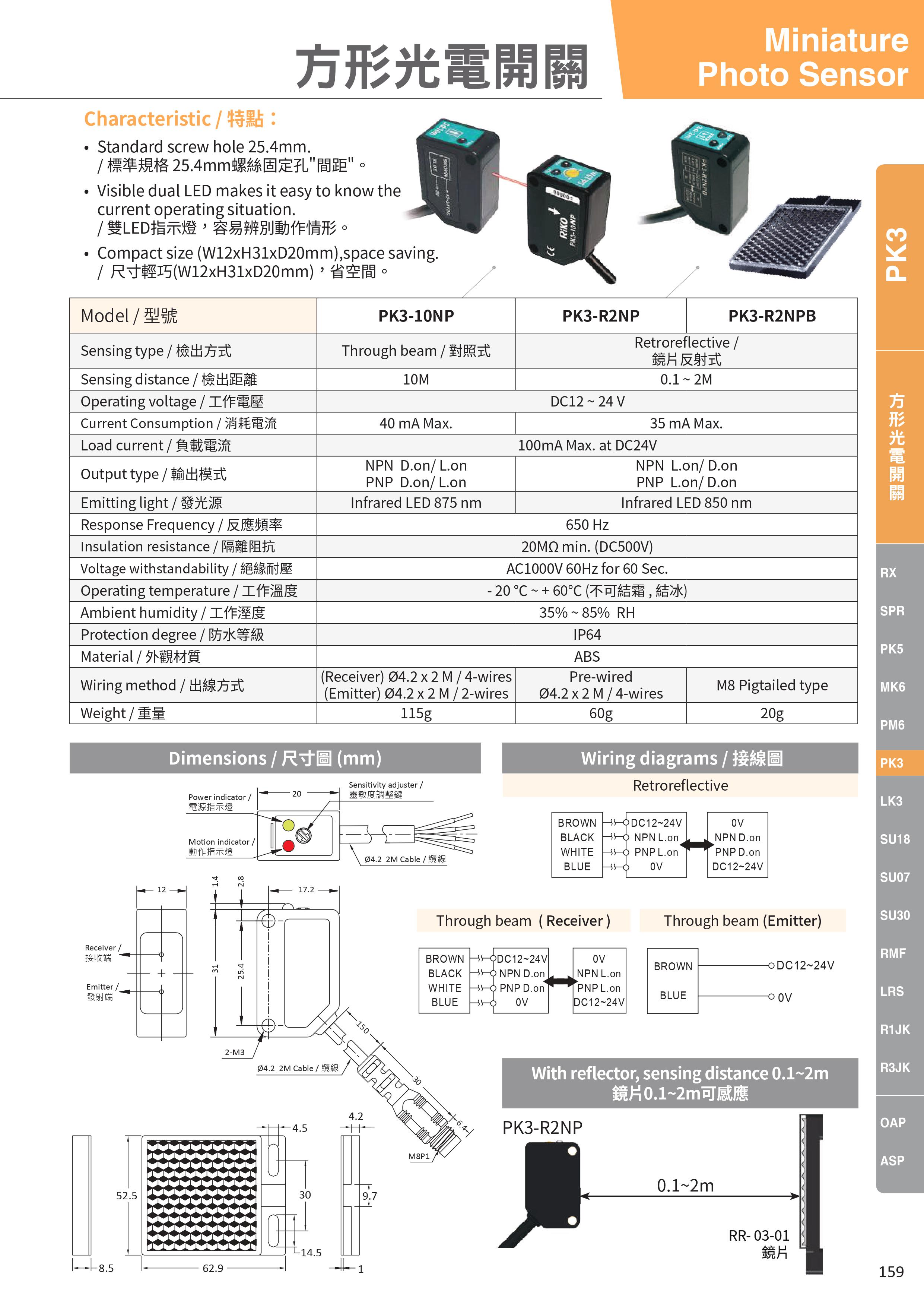

%E7%9B%AE%E9%8C%84%20(159).jpg)
Specification
| Model | Miniature Photo Sensor |
|---|---|
| Sensing distance | Through beam |
| Detection distance | 10M |
| Light Emitter | Infrared LED 875 nm |
| Operating voltage | DC12 ~ 24V |
| Current consumption | 40 mA Max. |
| Load current | 100mA Max. at DC24V |
| Model / Type | NPN D.on/ L.on PNP D.on/ L.on |
| Response time | 650 Hz |
| Insulation resistance | 20M Ω min (DC500V) |
| Voltage withstandability | AC1000V 60Hz for 60 Sec. |
| Opera tetemperature | -25℃ ~ + 60℃ (No freezing allowed ) |
| Operating temperature | 35%~ 85% RH |
| Protection degree | IP64 |
| Casing material | ABS |
| Wiring method | (Receiver) Ø4.2 x 2 M / 4-wires (Emitter) Ø4.2 x 2 M / 2-wires |
| Weight | 115g |
